EMG147247

TEMPUS® GU10 & TEGO EMERGENCY PACK EMC Compliant

SKU: EMG147247

  • 19 Product Discount Group
  • 2 year warranty
  • Class II

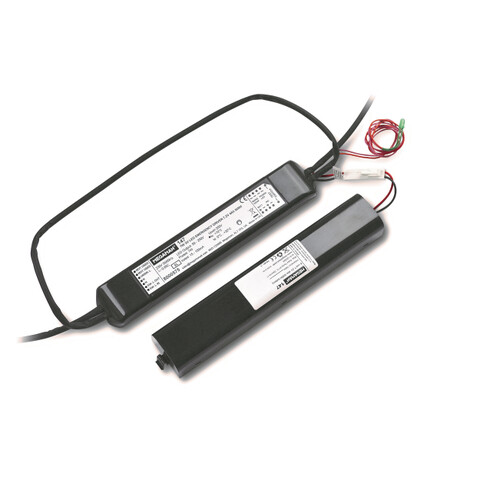

The new generation GU10 emergency pack, TEMPUS® offers a simplistic and slim design with faster installation than the previous sausage pack model. In times of power failure, the TEMPUS® Emergency Pack will power MEGMAN® TEMPUS® approved GU10s and our TEGO fully fire-rated downlight for a minimum of 3 hours.

COMPATIBLE WITH

  • ALL MEGAMAN® GU10 LEDs
  • TEGO FULLY FIRE-RATED LED DOWNLIGHT
  • MILENA INTEGRATED LED DOWNLIGHT
  • MILENALITE INTEGRATED LED DOWNLIGHT

Product discontinued

Sorry, this product EMG147247 has been discontinued. Please search for a similar product using the search box at the top,

Specifications

TEMPUS® GU10 & TEGO EMERGENCY PACK EMC Compliant
Product Code EMG147247
DescriptionTEMPUS® GU10 & TEGO EMERGENCY PACK EMC Compliant
Order in1
Watts4-7W
Battery duration3 hours
Charging Time24 Hours
Supply Voltage230Vac 50/60Hz
Supply Current40mA maximum
Power Factor0.35
LED Voltage (Vf)Auot-detect 55v max
Ambient Temperature (ta)0°C to +55°C
Maximum Case Temperature (tc)+70°C
Battery Charge Current NiMH (4Ah)200mA*
Initial Charge Period24 Hours
Conductor Size0.2 to 1.5mm²

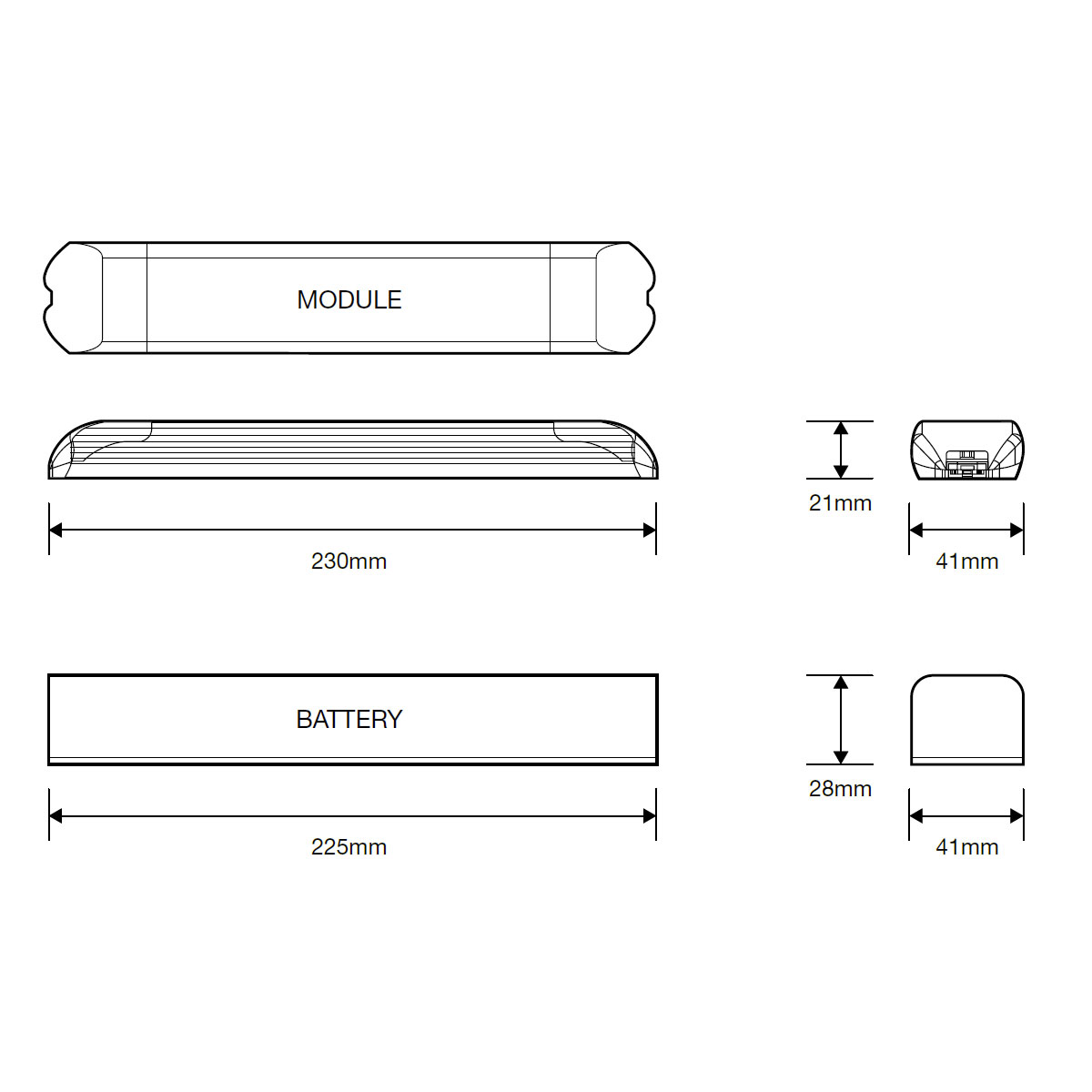

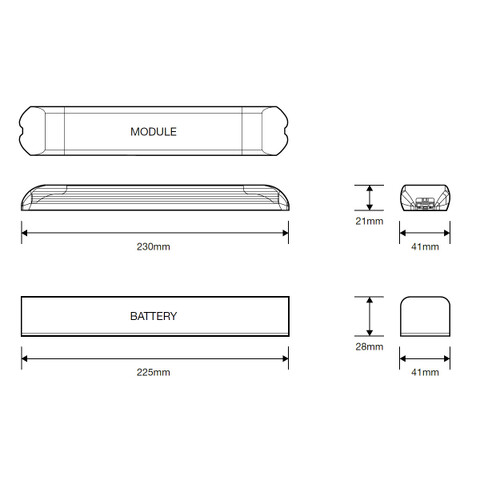

Housing Size230mm(W) x 41mm(D) x 21mm(H)
Fixing Centres197mm

Features

  • Simplistic wiring method
  • Smooth, solid & slim design
  • Lightweight inverter
  • Toughened plastic enclosure
  • No box needed
  • Indicator bezel
  • Battery pack connector
  • Designed for individual use
  • EMC system tested
  • Photometric data
  • Auto-adjusting

Benefits

  • Faster & simpler installation
  • Easy insertion through smaller downlight cut-outs
  • Installer friendly
  • Flame retardant plastic
  • Superior mechanical protection over sausage packs
  • Secure LED in fixed position
  • Improved aesthetics
  • Connect after terminating inverter
  • Replace without wiring alterations
  • Install in shallower ceiling voids
  • Passed tests to work with our GU10s
  • Quoted lumen output in emergency conditions
  • Spacing data for scheme design
  • Output is Self Adjusting to Fit Power
