TEMPUS® SELF-TEST EMERGENCY KIT 2.5W For LED Backlit & Sidelit Panels

SKU: 711048

  • 19 Product Discount Group
  • 2 year warranty
  • Class II

The MEGAMAN® TEMPUS® Emergency for LED panels, is a sleek light weight self-contained emergency conversion pack offering 3 hours back-up for 36W to 50W LED light panels. This kit is supplied with the two most common connectors plus a universal adapter. A high intensity green charge LED is supplied for visual status of the light.

Specifications

TEMPUS® SELF-TEST EMERGENCY KIT 2.5W For LED Backlit & Sidelit Panels
UK Order Code711048
International CodeLA11192
DescriptionTEMPUS® SELF-TEST EMERGENCY KIT 2.5W For LED Backlit & Sidelit Panels
Watts2.5W
Battery6.4V 1500mAh LiFePO4
Battery Duration3 hours
Working Temp.0°C - +45°C
Rated Supply220-240VAC / 50-60Hz
Weight (g)233

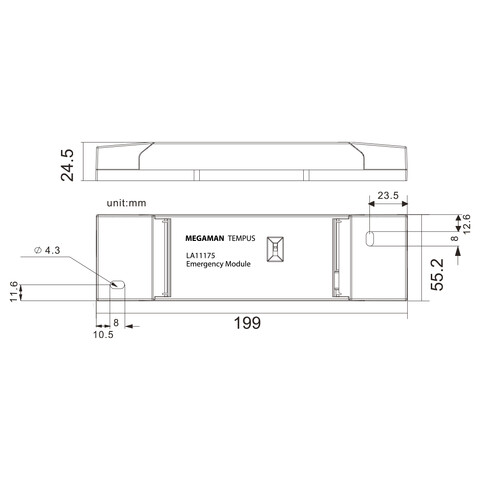

Dimensions (L x W x H mm)199x55.2x24.5

Features

  • 3 hour power time duration
  • 16 hour charge time
  • Included advanced high specification LiFePO4 battery
  • Flexible for LED module with a forward voltage of 10-90Vdc
  • Compatible with all dimmable and non-dimmable constant current LED driver
  • Over-charge and over discharge protection
  • Over temperature and short circuit protection
  • 850°C glow-wiring test
  • Green colour status LED indicator
  • Testing button

Benefits

  • Compact size
  • Comply with EN60598-1, EN 60598-2-22, UN 38 3 & IEC 62133
  • Compatible with 10V-90VDC input luminaires. The output is 2.5W in 3 hour emergency mode.

Applications

  • LED Panels
  • SELV Luminaires
