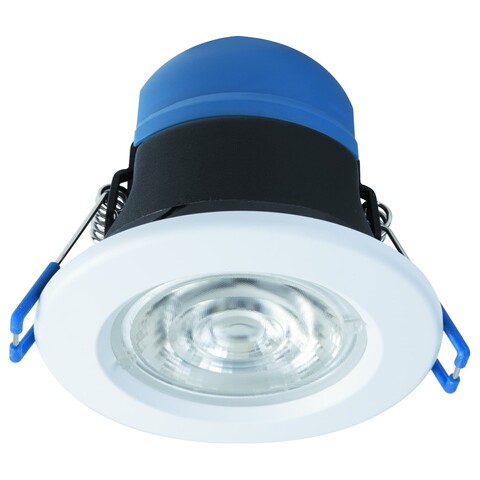

7.5W TEGO 2 FIRE-RATED INTEGRATED LED DOWNLIGHT DBT/CCT

SKU: 711183

NEW TEGO 2 provides fire protection that protects the integrity of the ceiling and prevents the spread of fire and smoke into the room above. MEGAMAN® TEGO 2 complies to BS476 Part 21 and is designed to withstand fire for up to 30, 60 and 90 minutes. With Megaman’s innovative Dual Beam Technology (DBT), TEGO 2 has two beam angles - 60˚ and 36˚ - available by simply pressing the lens front cover. Dual CCT 2800K & 4000K can also be activated by a simple twist of the integrated LED lamp lens cover. Dimmable and IP65 rated with a lumen output of 650lm at 7.5W, the TEGO 2 integrated downlight is ideal for environments with higher moisture, such as bathrooms and kitchens. The LED system includes up to 50,000hrs usage and a tool-free wiring NEW install with a loop in/loop out function. 5 year warranty included.

Specifications

7.5W TEGO 2 FIRE-RATED INTEGRATED LED DOWNLIGHT DBT/CCT
Product Code	711183
International Model Number	FDS72400v0/db/sc
Description	7.5W TEGO 2 FIRE-RATED INTEGRATED LED DOWNLIGHT IP65 / Dual Beam Technology (DBT) / Selectable Dual CCT
Watts	7.5W
Colour temperature / CRI	Dual CCT 2800K/4000K >80
Lumens (lm)	600/650
Dimmable	Yes - Triac dimming
Hrs Lamp Life (max)	50,000hrs L80B10

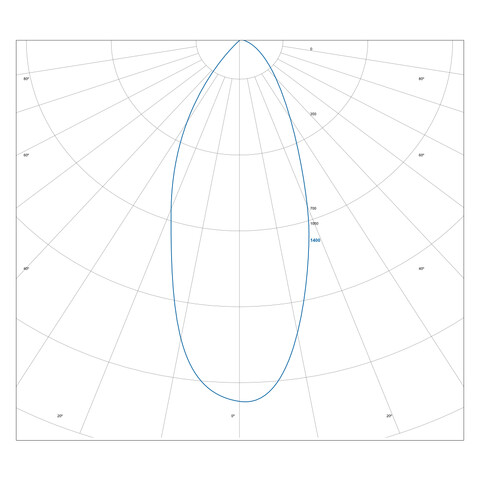

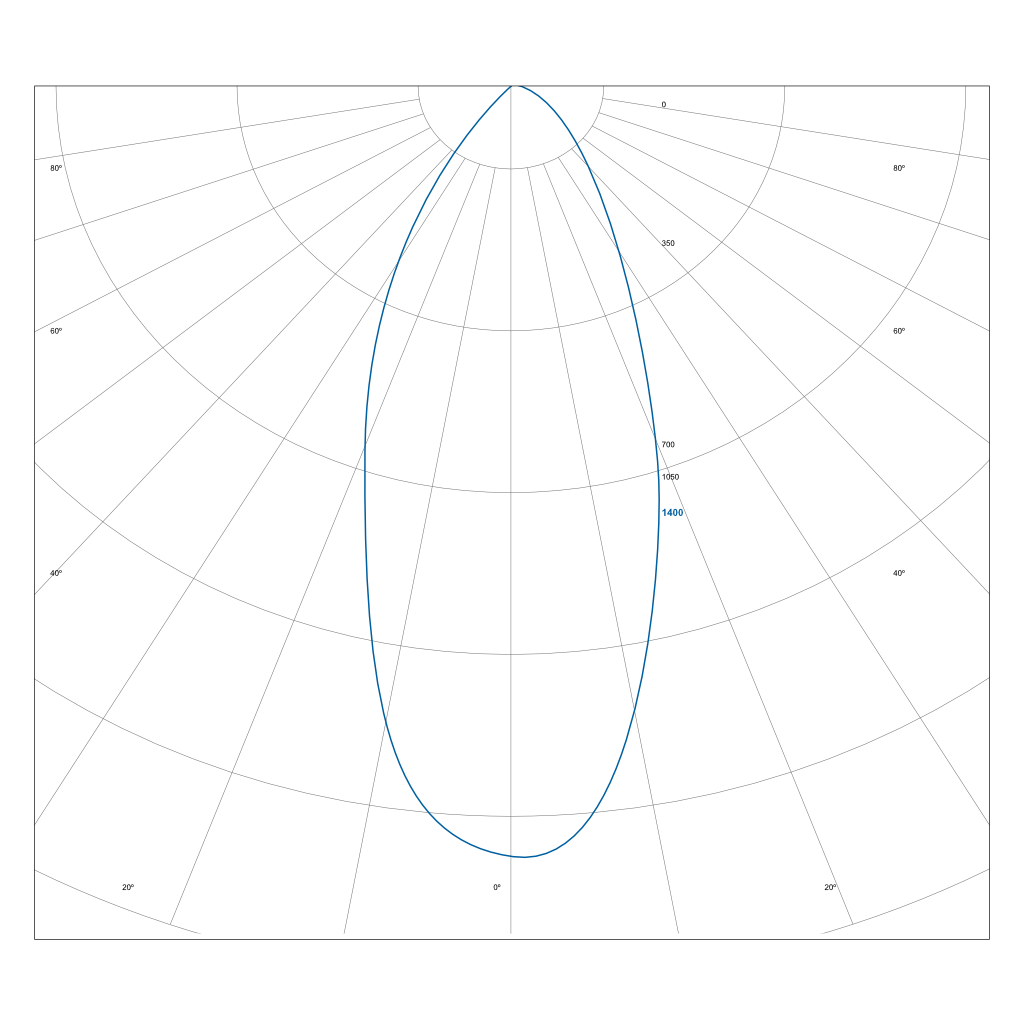

Beam Angle	36˚/60˚ Dual Beam Technology (DBT)
IP Rating	IP65
Input voltage	220-240V
Dimensions (HxD mm)	72mm / 87mm
Weight (g)	220g

Features

MEGAMAN® TEGO 2 FRD provides fire protection that protects the integrity of the ceiling and prevents the spread of fire and smoke into the room above. MEGAMAN® TEGO 2 FRD complies with BS476 Part 21 and is designed to withstand fire for up to 30, 60 and 90 minutes. MEGAMAN® TEGO 2 FRD comes with the Dual Beam Technology (DBT) which offers a flexible choice of two beam angles in one luminaire, switching CCT, as well as a dimmable function, provides flexibility and convenience at the same time with thoughtful design.

Features

Fire-rated, achieved BS 476-20:1987+AC:2014 -Part 20 and BS 476-21:1987+AC:2014 -Part 20 Part 21, ≥30mins, ≥60mins, ≥90mins.
MEGAMAN® Dual Beam Technology (DBT) downlight, two beam angles in one fitting, 36° & 60°

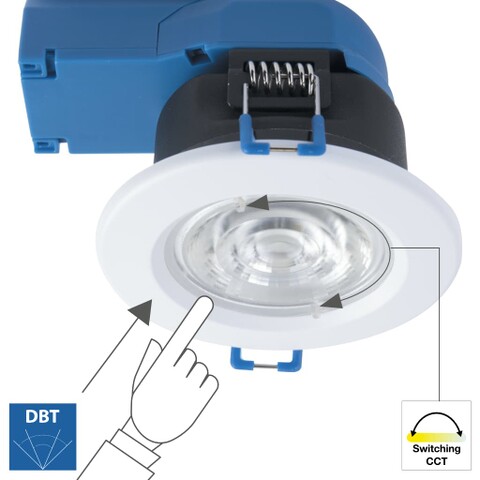

Dual CCT 2800K & 4000K and can be switched by turning the front bezel
Both beam angle and CCT can be changed in-situ, according to lighting requirements
Universal dimming (U-dim) caters to both leading edge and trailing edge dimmer with linear performance
IP65 rated perfect to use in moisture areas, e.g. bathroom
5 front cover options are (White, Chrome, Brushed Nickel, Matt Black and Gold) available and interchangeable
Long lifetime 50,000hrs L80B10

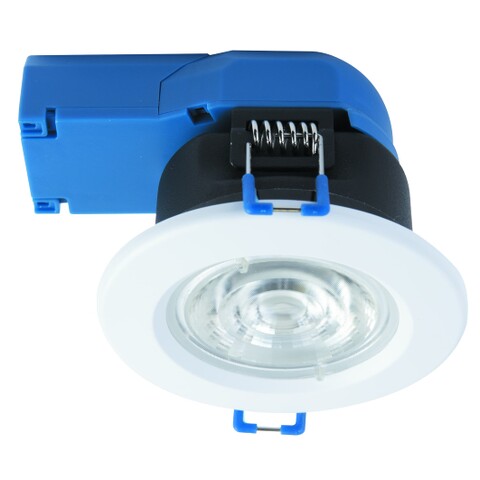

Tool-less wiring installation with a loop in/loop out function
Flicker-free ≤ 3%
Ideal replacement for 75W halogen lamp

Applications

Restaurants
Hotels
Offices
Kitchens
Corridors
