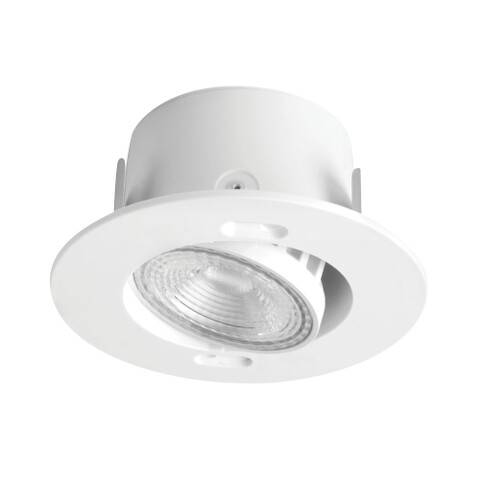

ANNA Integrated Dimming LED Downlight 5W 4000K

SKU: 190562

  • 11 Product Discount Group
  • 3 year warranty
  • Class II
  • IP44
  • Rich Colour Ra>90
  • UDIM

A cost effective and ideal replacement for traditional halogen PAR16 and GX53 downlights, MEGAMAN®’s ANNA is a compact integrated LED dimming downlight perfect for use directly under thermal insulated ceiling recesses.

Specifications

ANNA Integrated Dimming LED Downlight 5W 4000K
Product Code190562
International Model NumberFDS70000v0-dm/r9
DescriptionANNA Integrated Dimming LED Downlight 5W 4000K
Watts5W
Colour temperature / CRI4000K / 90
Lumens350lm
Lamp life L7050,000hr
Lamp life L9025,000hr
Weight102g

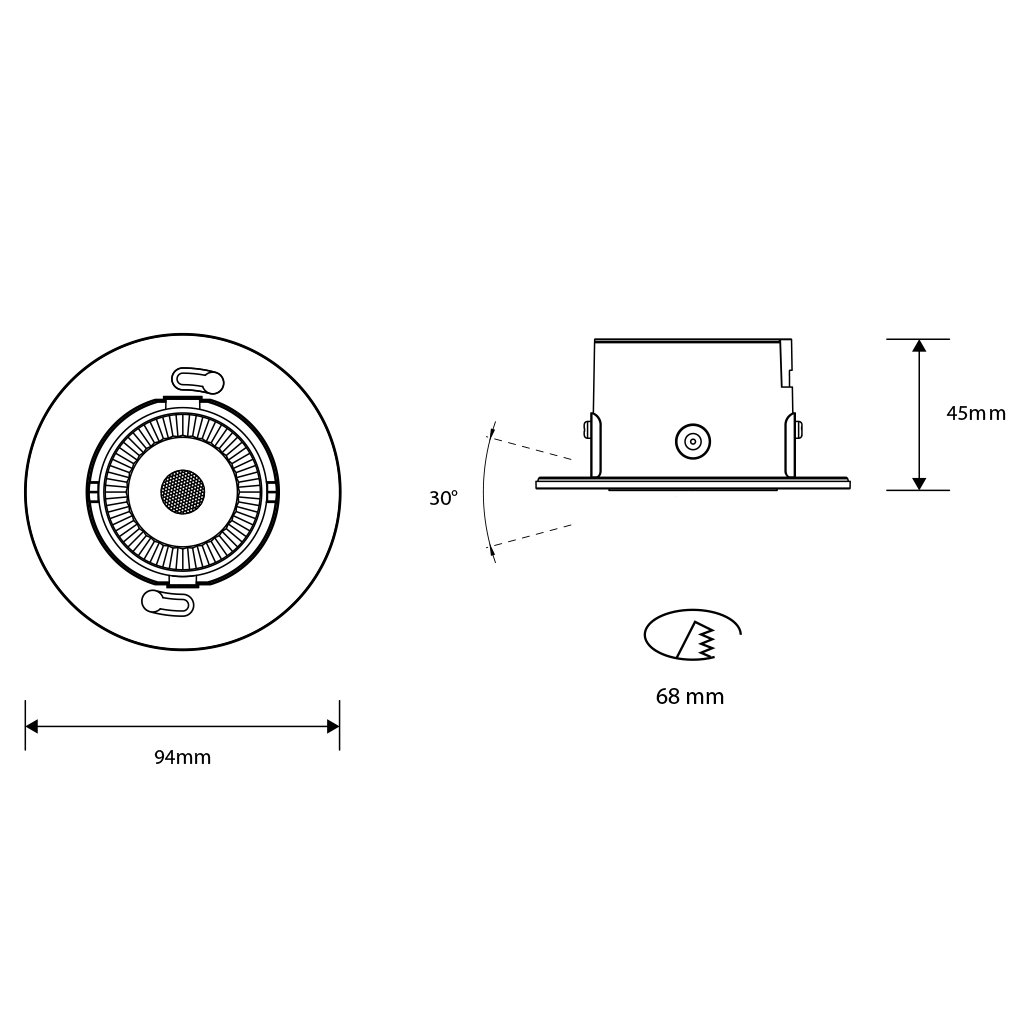

Dimensions45mm x 94mm
IP RatingIP44
Colour/FinishWhite
ShapeRound
Hole cut out68mm
Min Ceiling Depth50mm
Tilt Angle30°
Operating Temperature-30° to +40°

Features

  • Recessed integrated LED downlight
  • Compatible to install with prefabricated junction box and recess mounting
  • Hybrid reflector
  • Loop in/out function
  • Built-in driver
  • RichColour and U-dim options
  • 35,000 hours rated life (L70 B50 at Ta 25°C)

Benefits

  • Perfect replacement for PAR16 and MR16 traditional downlights
  • Providing excellent optics, high efficiency and precise beam control
  • Easy connection between junction boxes
  • With Megaman U-dim feature, compatible with both leading and trailing edge conventional dimmers for enhanced dimming range of 100% to 5%

Applications

  • Residential
  • General purpose applications
  • Retail
  • Hotels
  • Offices
  • Restaurants

Where to buy

Is this the product you are looking for? Megaman products are available from most electrical wholesalers across the country, as well as a number of online retailers.

  • Wholesale search

    Type your postcode into the search tool below to find your local electrical wholesale supplier.

  • Online

    Megaman products are available through a number of approved online suppliers.

    View all

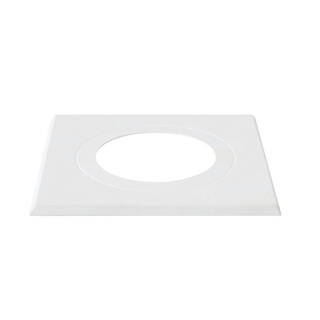

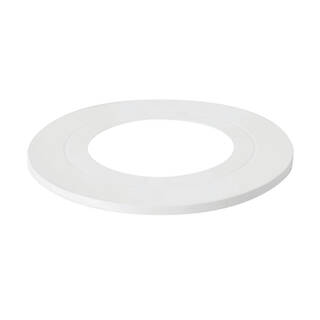

Accessories
